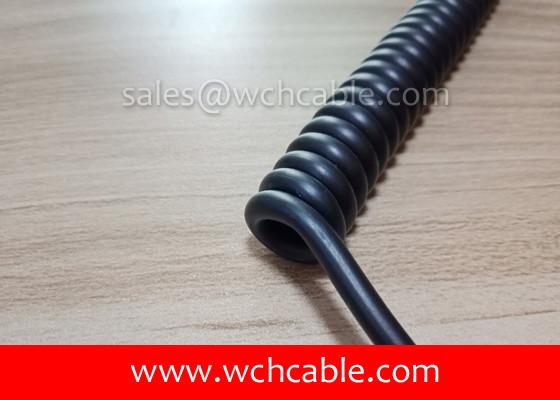

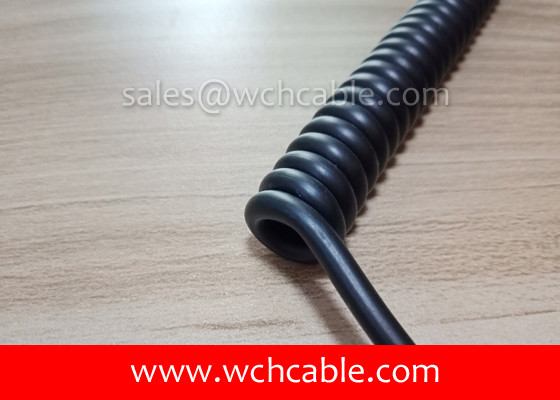

UL20979 Excellent Resilience Machinery Curly Cable

Name: UL20979 Excellent Resilience Machinery Curly Cable
Brand: WCH Cable
Price: 0.24 USD

Brand Name : WCH Cable

Model Number : UL20979

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD0.24 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100,000pcs per week

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Curly Style : UL20979

Feature : Excellent resilience

Copper : High purity Copper Wire

Rated Temperature : 80 Deg C

Insulation : AWM Compliant Materials

Rated Voltage : 600V

Jacket Material : Polyurethane PUR

Standard Reference : UL758, UL1581

Contact Now

UL20979 Excellent Resilience Machinery Curly Cable

Standard: Appliance Wiring Material UL758.
Rated Temperature: 80 deg C.
Rated Voltage: 600V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.
Other approvals: Cul, CSA / Canadian Standards Association.
Application: industry machinery interconnection.

Style Number	Core Quantity	Copper Conductor		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Core Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL20979	2C	30	7/0.100	0.76	1.90	0.76	6.00	381.00
	2C	28	7/0.127	0.76	2.00	0.76	6.30	239.00
	2C	26	7/0.16	0.76	2.10	0.76	6.40	150.00
	2C	24	11/0.16	0.76	2.20	0.76	6.60	94.20
	2C	22	17/0.16	0.76	2.40	0.76	7.00	59.40
	2C	20	21/0.178	0.76	2.50	0.76	7.40	36.70
	2C	18	34/0.178	0.76	2.80	0.76	8.00	23.20
	2C	16	26/0.25	0.76	3.10	0.76	10.20	14.60
	3C	30	7/0.100	0.76	1.90	0.76	7.90	381.00
	3C	28	7/0.127	0.76	2.00	0.76	8.10	239.00
	3C	26	7/0.16	0.76	2.10	0.76	8.30	150.00
	3C	24	11/0.16	0.76	2.20	0.76	8.50	94.20
	3C	22	17/0.16	0.76	2.40	0.76	8.90	59.40
	3C	20	21/0.178	0.76	2.50	0.76	9.40	36.70
	3C	18	34/0.178	0.76	2.80	0.76	10.00	23.20
	4C	30	7/0.100	0.76	1.90	0.76	8.10	381.00
	4C	28	7/0.127	0.76	2.00	0.76	8.30	239.00
	4C	26	7/0.16	0.76	2.10	0.76	8.60	150.00
	4C	24	11/0.16	0.76	2.20	0.76	8.90	94.20
	4C	22	17/0.16	0.76	2.40	0.76	9.30	59.40
	4C	20	21/0.178	0.76	2.50	0.76	9.80	36.70
	5C	30	7/0.100	0.76	1.90	0.76	8.40	381.00
	5C	28	7/0.127	0.76	2.00	0.76	8.70	239.00
	5C	26	7/0.16	0.76	2.10	0.76	8.80	150.00
	5C	24	11/0.16	0.76	2.20	0.76	9.20	94.20
	5C	22	17/0.16	0.76	2.40	0.76	9.80	59.40
	6C	30	7/0.100	0.76	1.90	0.76	8.80	381.00
	6C	28	7/0.127	0.76	2.00	0.76	9.10	239.00
	6C	26	7/0.16	0.76	2.10	0.76	9.40	150.00
	6C	24	11/0.16	0.76	2.20	0.76	9.70	94.20

UL20979 Excellent Resilience Machinery Curly Cable
