UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

Name: UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V
Brand: WCH Cable
Price: 0.25 USD

Buy cheap UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V product

Brand Name : WCH Cable

Model Number : UL21765

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.25 per piece

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 100,000 pieces per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton box

Style Number : UL21765

Conductor Material : Highly Pure Copper Wire Strands

Rated Temperature : 105°C

Insulation Material : AWM Complying Material

Rated Voltage : 300V

Jacket Material : Thermoplastic TPU

Feature : Easy Movement Flexible

Jacket Thickness : 30mils Minimum

Contact Now

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

WCH Cable company is working hard to develop good quality curly cable for customers. Its 105C TPU coated curly cable is the excellent example, highly resilient, quality stable, and spec can be tailor made per customer's requirement. Come and contact the customer service to work out the best article overal the world.

Feature: highly resilient, quality stable.

Approval style: UL21765.

Extendable length: cable diameter x 4.

Spiral dimension: to be tailor made per requirement.

Style Number	Conductor Quantity	Conductor Strands Size		Insulation Thickness	Insulation Diameter	Jacket Thickness	Overall Diameter	Conductor Resistance
Style Number	Conductor Quantity	AWG	No/mm	mm	mm	mm	mm	Ω/KM
UL21765	2C	30	7/0.100	0.23	0.80	0.76	3.60	381.00
	2C	28	7/0.127	0.23	0.90	0.76	3.90	239.00
	2C	26	7/0.16	0.23	1.00	0.76	4.00	150.00
	2C	24	11/0.16	0.23	1.10	0.76	4.20	94.20
	2C	22	17/0.16	0.23	1.30	0.76	4.60	59.40
	2C	20	21/0.178	0.23	1.50	0.76	5.00	36.70
	2C	18	34/0.178	0.23	1.80	0.76	5.60	23.20
	2C	16	26/0.25	0.23	2.00	0.76	7.80	14.60
	3C	30	7/0.100	0.23	0.80	0.76	5.50	381.00
	3C	28	7/0.127	0.23	0.90	0.76	5.70	239.00
	3C	26	7/0.16	0.23	1.00	0.76	5.90	150.00
	3C	24	11/0.16	0.23	1.10	0.76	6.10	94.20
	3C	22	17/0.16	0.23	1.30	0.76	6.50	59.40
	3C	20	21/0.178	0.23	1.50	0.76	7.00	36.70
	3C	18	34/0.178	0.23	1.80	0.76	7.60	23.20
	4C	30	7/0.100	0.23	0.80	0.76	5.70	381.00
	4C	28	7/0.127	0.23	0.90	0.76	5.90	239.00
	4C	26	7/0.16	0.23	1.00	0.76	6.20	150.00
	4C	24	11/0.16	0.23	1.10	0.76	6.50	94.20
	4C	22	17/0.16	0.23	1.30	0.76	6.90	59.40
	4C	20	21/0.178	0.23	1.50	0.76	7.40	36.70
	5C	30	7/0.100	0.23	0.80	0.76	6.00	381.00
	5C	28	7/0.127	0.23	0.90	0.76	6.30	239.00
	5C	26	7/0.16	0.23	1.00	0.76	6.40	150.00
	5C	24	11/0.16	0.23	1.10	0.76	6.80	94.20
	5C	22	17/0.16	0.23	1.30	0.76	7.40	59.40
	6C	30	7/0.100	0.23	0.80	0.76	6.40	381.00
	6C	28	7/0.127	0.23	0.90	0.76	6.70	239.00
	6C	26	7/0.16	0.23	1.00	0.76	7.00	150.00
	6C	24	11/0.16	0.23	1.10	0.76	7.30	94.20

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

Style Number:	UL21765
Rated Grade:	105 deg C, 300 Vac, cable flame.
Conductor:	Above 99.99% High purity copper wires
Screen Shield:	Aluminum Foil, Clear Mylar, Braided Copper, Optional
Jacket:	Extruded Polyurethane TPU
Average thickness:	30 mils (Ref.)
Minimum thickness:	24 mils (Ref.)
Specification:	Detailed specification is to be customized per customer's requirement.
Executed Standard:	Appliance Wiring Material UL 758.
Application:	External interconnection of electronic equipment and appliances.
Manufacturer:	WCH Cable Industrial Co., Ltd.
Manufacture Location:	Dongguan, Guangdong, China
Other Name of the Cable:	UL Cable, TPU Cable, Movement Cable, Curly Cable, UL21765 Cable

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V

Tag: UL21765, cable, curly cable

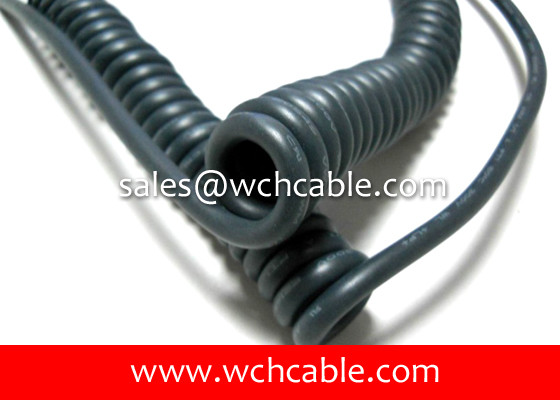

UL21765 TPU Coated Tailor Made Easy Movement Flexible Curly Cable 105C 300V Images
