UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant)

Product Categories
WCH Cable Industrial Co., Ltd.
Contact Now

UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant)

Brand Name : WCH Cable

Model Number : UL21769

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.255 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Conductor : Pure coper wire strands

Insulation Material : AWM Complied Materials

Rated Temperature : 105 Cel Degree

Jacket Material : Thermoplastic TPU

Rated Voltage : 1000V

Conductor Size : 50AWG to 10AWG

Style Number : UL21769

Jacket Thickness : 30 Mils minimum

Contact Now

UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant)



Curly cable style: UL21769;

Conductor material: highly pure copper wire strands;

Insulation material: high quality AWM complied material;

Jacket material: Thermoplastic TPU.



Outstanding feature:

  • up to -40° cold temperature resistant;
  • 60°C or 80°C oil compatible;
  • UV sunlight resistant.



Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21679 2C 30 7/0.100 0.76 1.90 0.76 6.00 381.00
2C 28 7/0.127 0.76 2.00 0.76 6.30 239.00
2C 26 7/0.16 0.76 2.10 0.76 6.40 150.00
2C 24 11/0.16 0.76 2.20 0.76 6.60 94.20
2C 22 17/0.16 0.76 2.40 0.76 7.00 59.40
2C 20 21/0.178 0.76 2.50 0.76 7.40 36.70
2C 18 34/0.178 0.76 2.80 0.76 8.00 23.20
2C 16 26/0.25 0.76 3.10 0.76 10.20 14.60
3C 30 7/0.100 0.76 1.90 0.76 7.90 381.00
3C 28 7/0.127 0.76 2.00 0.76 8.10 239.00
3C 26 7/0.16 0.76 2.10 0.76 8.30 150.00
3C 24 11/0.16 0.76 2.20 0.76 8.50 94.20
3C 22 17/0.16 0.76 2.40 0.76 8.90 59.40
3C 20 21/0.178 0.76 2.50 0.76 9.40 36.70
3C 18 34/0.178 0.76 2.80 0.76 10.00 23.20
4C 30 7/0.100 0.76 1.90 0.76 8.10 381.00
4C 28 7/0.127 0.76 2.00 0.76 8.30 239.00
4C 26 7/0.16 0.76 2.10 0.76 8.60 150.00
4C 24 11/0.16 0.76 2.20 0.76 8.90 94.20
4C 22 17/0.16 0.76 2.40 0.76 9.30 59.40
4C 20 21/0.178 0.76 2.50 0.76 9.80 36.70
5C 30 7/0.100 0.76 1.90 0.76 8.40 381.00
5C 28 7/0.127 0.76 2.00 0.76 8.70 239.00
5C 26 7/0.16 0.76 2.10 0.76 8.80 150.00
5C 24 11/0.16 0.76 2.20 0.76 9.20 94.20
5C 22 17/0.16 0.76 2.40 0.76 9.80 59.40
6C 30 7/0.100 0.76 1.90 0.76 8.80 381.00
6C 28 7/0.127 0.76 2.00 0.76 9.10 239.00
6C 26 7/0.16 0.76 2.10 0.76 9.40 150.00
6C 24 11/0.16 0.76 2.20 0.76 9.70 94.20



UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant)

Tag: UL21769, cable, curly cable


Buy cheap UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant) product

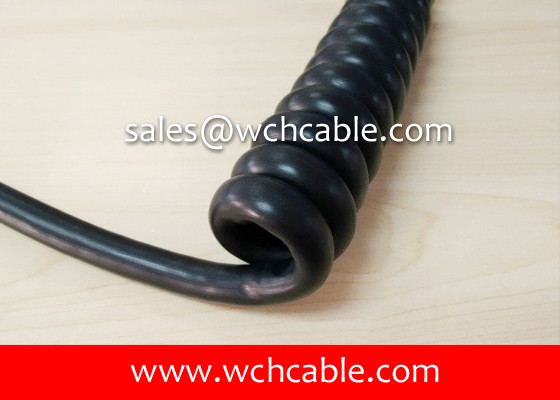

UL21769 High Voltage Protection Power Control Curly Cable 105C 1000V (Sunlight Resistant) Images
