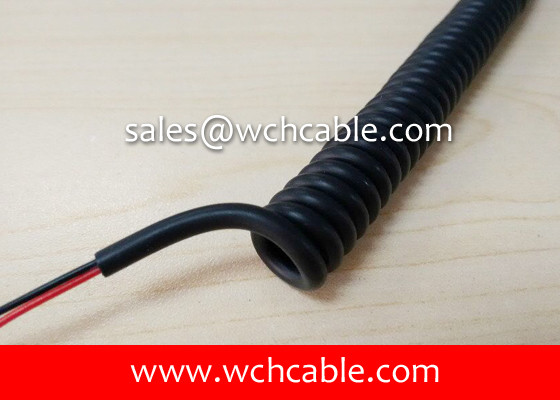

UL21770 TPU Sheath Good Heat Resistance Curly Cable 105C 1000V (80C Oil Resistant)

Brand Name : WCH Cable

Model Number : UL21770

Certification : UL, CUL, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.251 per piece

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton

Conductor : Pure coper wire strands

Insulation Material : AWM Complied Materials

Rated Temperature : 105 Cel Degree

Jacket Material : Thermoplastic TPU

Rated Voltage : 1000V

Standard : UL758, UL1581

Style Number : UL21770

Jacket Wall Thickness : 30 Mils minimum

Contact Now

UL21770 TPU Sheath Good Heat Resistance Curly Cable 105C 1000V (80C Oil Resistant)



Curly cable style: UL21770;

Curly cable rated: 105°C, 1000V;

Outstanding feature: 60C or 80C oil resistant;

Curly cable extendable length: spiral section dimension x 3.5;

Curly cable coil diameter: cable overall diameter x 3.5.



The factory provides full solution of curly cable requirement.

  • raw cable extrusion;
  • curly cable coil process;
  • ends treatment, such as stripping, tinning, terminal crimpped, etc;
  • strain relief moulding, mould tool set up.



Style Number Core Quantity Conductor Gauge Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21770 2C 30 7/0.100 0.76 1.90 0.76 6.00 381.00
2C 28 7/0.127 0.76 2.00 0.76 6.30 239.00
2C 26 7/0.16 0.76 2.10 0.76 6.40 150.00
2C 24 11/0.16 0.76 2.20 0.76 6.60 94.20
2C 22 17/0.16 0.76 2.40 0.76 7.00 59.40
2C 20 21/0.178 0.76 2.50 0.76 7.40 36.70
2C 18 34/0.178 0.76 2.80 0.76 8.00 23.20
2C 16 26/0.25 0.76 3.10 0.76 10.20 14.60
3C 30 7/0.100 0.76 1.90 0.76 7.90 381.00
3C 28 7/0.127 0.76 2.00 0.76 8.10 239.00
3C 26 7/0.16 0.76 2.10 0.76 8.30 150.00
3C 24 11/0.16 0.76 2.20 0.76 8.50 94.20
3C 22 17/0.16 0.76 2.40 0.76 8.90 59.40
3C 20 21/0.178 0.76 2.50 0.76 9.40 36.70
3C 18 34/0.178 0.76 2.80 0.76 10.00 23.20
4C 30 7/0.100 0.76 1.90 0.76 8.10 381.00
4C 28 7/0.127 0.76 2.00 0.76 8.30 239.00
4C 26 7/0.16 0.76 2.10 0.76 8.60 150.00
4C 24 11/0.16 0.76 2.20 0.76 8.90 94.20
4C 22 17/0.16 0.76 2.40 0.76 9.30 59.40
4C 20 21/0.178 0.76 2.50 0.76 9.80 36.70
5C 30 7/0.100 0.76 1.90 0.76 8.40 381.00
5C 28 7/0.127 0.76 2.00 0.76 8.70 239.00
5C 26 7/0.16 0.76 2.10 0.76 8.80 150.00
5C 24 11/0.16 0.76 2.20 0.76 9.20 94.20
5C 22 17/0.16 0.76 2.40 0.76 9.80 59.40
6C 30 7/0.100 0.76 1.90 0.76 8.80 381.00
6C 28 7/0.127 0.76 2.00 0.76 9.10 239.00
6C 26 7/0.16 0.76 2.10 0.76 9.40 150.00
6C 24 11/0.16 0.76 2.20 0.76 9.70 94.20
