UL21313 Class 1 Internal Wiring Industrial Curly Cable 60C 30V

WCH Cable Industrial Co., Ltd.
Contact Now

UL21313 Class 1 Internal Wiring Industrial Curly Cable 60C 30V

Brand Name : WCH Cable

Model Number : UL21313

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200 pieces

Price : USD0.25 per piece

Payment Terms : L/C, D/P, D/A, T/T, Western Union, MoneyGram

Supply Ability : 200,000 pieces per month

Delivery Time : 9 days for ready goods

Packaging Details : 200 pieces per carton

Style Number : UL21313

Conductor Material : Highly pure copper wire strands

Rated Temperature : 60°C

Insulation Material : AWM verified materials

Rated Voltage : 30V

Jacket Material : Quality Thermoplastic TPU

Conductor Quantity : 2C to 50C

Jacket Thickness : 15 Mils minimum

Contact Now

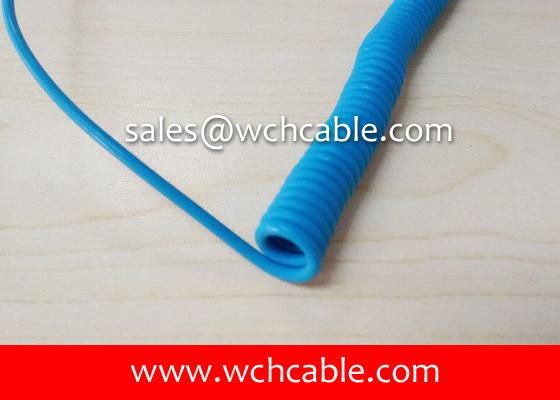

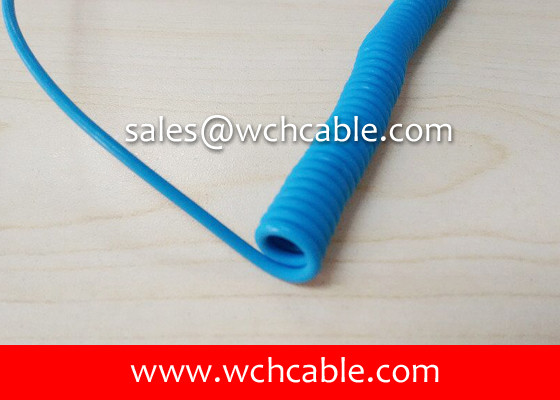

UL21313 Class 1 Internal Wiring Industrial Curly Cable 60C 30V



Style number: UL21313;

Application: internal wiring and external interconnection of electronic appliances;

Rated: 60°C, 30V;

Insulation material: PP, HDPE, LDPE, PVC, FRPE, TPE, TPU, PUR, etc.

Jacket material: quality thermoplastic TPU.



Standard: Appliance Wiring Material UL758.

Curly cable dimensions to be custom made per customers requirement.



Style Number Core Quantity Conductor Size Conductor Strands Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21313 2C 30 11/0.08 0.23 0.80 0.38 3.40 381.00
2C 28 16/0.08 0.23 0.90 0.38 3.70 239.00
2C 26 26/0.08 0.23 1.00 0.38 3.80 150.00
2C 24 41/0.08 0.23 1.10 0.38 4.00 94.20
2C 22 65/0.08 0.23 1.30 0.38 4.40 59.40
2C 20 104/0.08 0.23 1.50 0.38 4.80 36.70
2C 18 164/0.08 0.23 1.80 0.38 5.40 23.20
2C 16 265/0.08 0.23 2.00 0.38 7.20 14.60
3C 30 11/0.08 0.23 0.80 0.38 4.80 381.00
3C 28 16/0.08 0.23 0.90 0.38 5.00 239.00
3C 26 26/0.08 0.23 1.00 0.38 5.20 150.00
3C 24 41/0.08 0.23 1.10 0.38 5.40 94.20
3C 22 65/0.08 0.23 1.30 0.38 5.60 59.40
3C 20 104/0.08 0.23 1.50 0.38 6.30 36.70
3C 18 164/0.08 0.23 1.80 0.38 6.90 23.20
4C 30 11/0.08 0.23 0.80 0.38 5.00 381.00
4C 28 16/0.08 0.23 0.90 0.38 5.20 239.00
4C 26 26/0.08 0.23 1.00 0.38 5.50 150.00
4C 24 41/0.08 0.23 1.10 0.38 5.90 94.20
4C 22 65/0.08 0.23 1.30 0.38 6.20 59.40
4C 20 104/0.08 0.23 1.50 0.38 6.70 36.70
5C 30 11/0.08 0.23 0.80 0.38 5.20 381.00
5C 28 16/0.08 0.23 0.90 0.38 5.40 239.00
5C 26 26/0.08 0.23 1.00 0.38 5.50 150.00
5C 24 41/0.08 0.23 1.10 0.38 5.90 94.20
5C 22 65/0.08 0.23 1.30 0.38 6.50 59.40
6C 30 11/0.08 0.23 0.80 0.38 5.40 381.00
6C 28 16/0.08 0.23 0.90 0.38 5.80 239.00
6C 26 26/0.08 0.23 1.00 0.38 6.20 150.00
6C 24 41/0.08 0.23 1.10 0.38 6.50 94.20



UL21313 Class 1 Internal Wiring Industrial Curly Cable 60C 30V

Tag: UL21313, cable, curly cable
