UL PVC Cable, AWM Style UL2854 14AWG 3C VW-1 80°C 30V, XLPE / PVC

Product Categories

WCH Cable Industrial Co., Ltd.

Contact Now

Name: UL PVC Cable AWM Style UL2854 14AWG 3C VW1 80C 30V XLPE PVC
Brand: WCH Cable
Price: 0.10 USD

Brand Name : WCH Cable

Model Number : UL2854

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.10 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Style Number : UL2854

Conductor Material : Highly pure copper wire

Rated Temperature : 80°C

Insulation Material : Crosslinked XLPE

Rated Voltage : 30V

Sheath Material : Polyvinyl Chloride PVC

Application : Power Control Connection

Contact Now

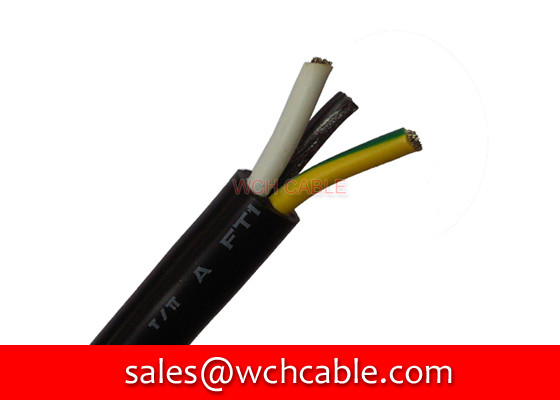

UL PVC Cable, AWM Style UL2854 14AWG 3C VW-1 80°C 30V, XLPE / PVC

Conductor size: 14AWG

Wire assembly: 3 cores.

Insulation color: Black, white, yellow/green.

Insulation material: XLPE

Shield: no shield.

Sheath color: Black.

Sheath material: PVC

Sheath thickness: 0.23mm

Flammability: VW-1

Rated temperature: 80°C

Rated voltage: 30V

Conductor resistance: 9.5Ω/km

Insulation resistance: 100mΩ/km

Recommended application: power control connection.

Applied standard: UL758, UL1581.

Remark: color of wires or sheath can be changed according to customer's requirement.
