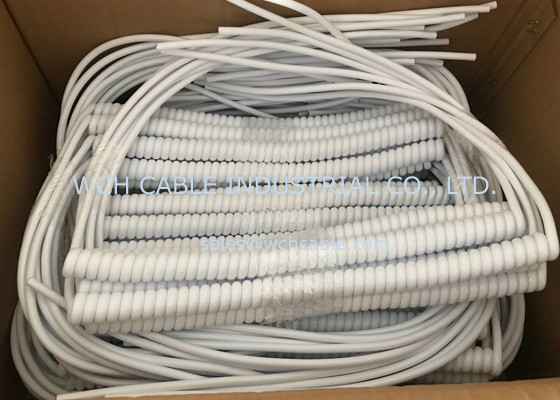

UL21929 Heat Resistant Curly Cable

Brand Name : WCH Cable

Model Number : UL21929

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 200pcs

Price : USD 0.22 per piece

Payment Terms : D/P, T/T, L/C, D/A, Western Union, MoneyGram

Supply Ability : 100,000 pieces per month

Delivery Time : 9 days for ready goods

Packaging Details : 200pcs per carton box

Style Number : UL21929

Conductor Material : Highly Pure Copper Wire Strands

Rated Temperature : 105°C

Insulation Material : Polypropylene PP

Rated Voltage : 1000V

Jacket Material : Thermoplastic TPU

Feature : Heat Resistant

Jacket Thickness : 15mils Minimum

Contact Now

UL21929 Heat Resistant Curly Cable



Conductor material: high purity copper wires, tin plated.

Insulation material: quality polypropylene PP.

Sheath material: spiral coiling dedicated thermoplastic TPU.

Spiral extended length: cable diameter x 3.5.

Cable Rated: 105°C, 1000V.



Feature: heat resistant, good for application under high temperature condition.

Cold temperature resistant, up to -40°C.



Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21929 2C 30 7/0.100 0.76 1.90 0.38 5.80 381.00
2C 28 7/0.127 0.76 2.00 0.38 6.10 239.00
2C 26 7/0.16 0.76 2.10 0.38 6.20 150.00
2C 24 11/0.16 0.76 2.20 0.38 6.40 94.20
2C 22 17/0.16 0.76 2.40 0.38 6.80 59.40
2C 20 21/0.178 0.76 2.50 0.38 7.20 36.70
2C 18 34/0.178 0.76 2.80 0.38 7.80 23.20
2C 16 26/0.25 0.76 3.10 0.38 10.00 14.60
3C 30 7/0.100 0.76 1.90 0.38 7.70 381.00
3C 28 7/0.127 0.76 2.00 0.38 7.90 239.00
3C 26 7/0.16 0.76 2.10 0.38 8.10 150.00
3C 24 11/0.16 0.76 2.20 0.38 8.30 94.20
3C 22 17/0.16 0.76 2.40 0.38 8.70 59.40
3C 20 21/0.178 0.76 2.50 0.38 9.20 36.70
3C 18 34/0.178 0.76 2.80 0.38 9.80 23.20
4C 30 7/0.100 0.76 1.90 0.38 7.90 381.00
4C 28 7/0.127 0.76 2.00 0.38 8.10 239.00
4C 26 7/0.16 0.76 2.10 0.38 8.40 150.00
4C 24 11/0.16 0.76 2.20 0.38 8.70 94.20
4C 22 17/0.16 0.76 2.40 0.38 9.10 59.40
4C 20 21/0.178 0.76 2.50 0.38 9.70 36.70
5C 30 7/0.100 0.76 1.90 0.38 8.20 381.00
5C 28 7/0.127 0.76 2.00 0.38 8.50 239.00
5C 26 7/0.16 0.76 2.10 0.38 8.60 150.00
5C 24 11/0.16 0.76 2.20 0.38 9.00 94.20
5C 22 17/0.16 0.76 2.40 0.38 9.60 59.40
6C 30 7/0.100 0.76 1.90 0.38 8.60 381.00
6C 28 7/0.127 0.76 2.00 0.38 8.90 239.00
6C 26 7/0.16 0.76 2.10 0.38 9.20 150.00
6C 24 11/0.16 0.76 2.20 0.38 9.50 94.20
