UL11025 Low Voltage Single Insulated mPPE Wire Halogen Free 30V 105C

Name: UL11025 Low Voltage Single Insulated mPPE Wire Halogen Free 30V 105C
Brand: WCH Cable
Price: 0.06 USD

Buy cheap UL11025 Low Voltage Single Insulated mPPE Wire Halogen Free 30V 105C product

Brand Name : WCH Cable

Model Number : WCH-UL11025

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 610 meters

Price : USD 0.06 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meters per month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per reel or spool

Feature : Low Voltage, Halogen Free

Rated Voltage : 30V Low Voltage

UL Style Number : UL11025

Contact Now

UL Style Description: Single conductor with extruded insulation
Rating: 105 deg C, 30 Vac, Horizontal flame.
Conductor Size: 40 - 10 AWG.
Insulation Material: Extruded mPPE.
Executed Standard: Appliance Wiring Material UL 758.

Approval Style Number	Conductor		Insulation Thickness	Overall Diameter	Standard Put-up		Conductor Resistance
Approval Style Number	AWG	No/mm	mm	mm	Feet/Reel	Meter/Reel	Ω/KM
UL11025	30	7/0.100	0.10	0.70	2000	610	381.00
	28	7/0.127	0.10	0.80	2000	610	239.00
	26	7/0.16	0.10	0.90	2000	610	150.00
	24	11/0.16	0.10	1.00	2000	610	94.20
	22	17/0.16	0.10	1.20	2000	610	59.40
	20	21/0.178	0.10	1.40	2000	610	36.70
	18	34/0.178	0.10	1.60	2000	610	23.20
	16	26/0.25	0.10	1.90	2000	610	14.60
UL11025	30	1/0.25	0.10	0.65	2000	610	361.00
	28	1/0.32	0.10	0.70	2000	610	227.00
	26	1/0.404	0.10	0.80	2000	610	143.00
	24	1/0.511	0.10	0.90	2000	610	89.30
	22	1/0.643	0.10	1.05	2000	610	56.40
	20	1/0.813	0.10	1.20	2000	610	35.20
	18	1/1.024	0.10	1.40	2000	610	22.20
	16	1/1.29	0.10	1.70	2000	610	14.00

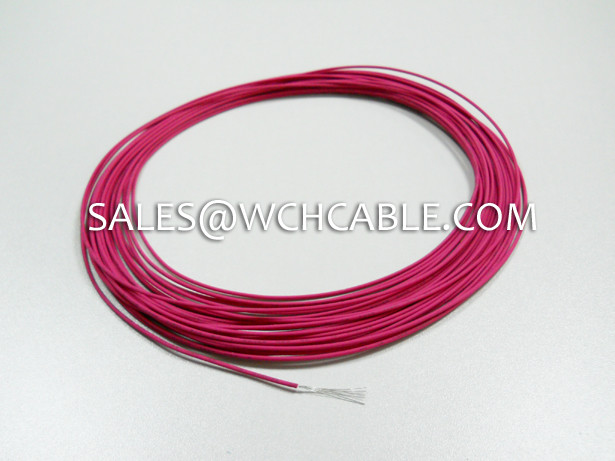

UL11025 Low Voltage Single Insulated mPPE Wire Halogen Free 30V 105C Images
