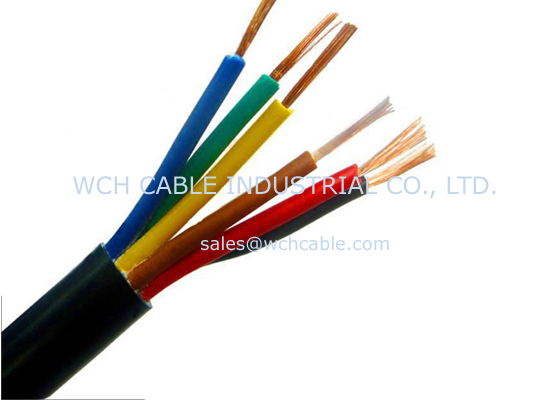

UL20413 Industry Automatic Machine TPU Sheathed Cable

Brand Name : WCH Cable

Model Number : UL20413

Certification : UL, Cul, AWM

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD0.22 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500,000 meters per week

Delivery Time : 9 days for ready goods

Packaging Details : 2000 feet per carton

Conductor : Tinned copper wire strands

Rated Temperature : 60°C

Insulation : AWM Appliant Material

Rated Voltage : 150V

Jacket Material : Thermoplastic Polyurethane TPU

Standard Reference : UL758, UL1581, AWM

Application : Industry Automatic Machine

Contact Now

UL20413 Industry Automatic Machine TPU Sheathed Cable

Conductor: Tinned copper wire strands
Insulation: Quality materials complying with AWM standard.
Screen Shield: Foil, spiral shield, copper braiding, optional.
Jacket: Thermoplastic Polyurethane TPU


Rated Temperature: 60°C.
Rated Voltage: 150V.
Flammability: UL VW-1 passed.
Uniform insulation thickness for smooth stripping.



Standard: Appliance Wiring Material UL758.
Other approvals: Cul, CSA / Canadian Standards Association.


Application: Industry automatic machine connection



Style Number Core Quantity Copper Conductor Insulation Thickness Insulation Diameter Jacket Thickness Overall Diameter Conductor Resistance
AWG No/mm mm mm mm mm Ω/KM
UL20413 2C 30 7/0.100 0.23 0.80 0.76 3.60 381.00
2C 28 7/0.127 0.23 0.90 0.76 3.90 239.00
2C 26 7/0.16 0.23 1.00 0.76 4.00 150.00
2C 24 11/0.16 0.23 1.10 0.76 4.20 94.20
2C 22 17/0.16 0.23 1.30 0.76 4.60 59.40
2C 20 21/0.178 0.23 1.50 0.76 5.00 36.70
2C 18 34/0.178 0.23 1.80 0.76 5.60 23.20
2C 16 26/0.25 0.23 2.00 0.76 7.80 14.60
3C 30 7/0.100 0.23 0.80 0.76 5.50 381.00
3C 28 7/0.127 0.23 0.90 0.76 5.70 239.00
3C 26 7/0.16 0.23 1.00 0.76 5.90 150.00
3C 24 11/0.16 0.23 1.10 0.76 6.10 94.20
3C 22 17/0.16 0.23 1.30 0.76 6.50 59.40
3C 20 21/0.178 0.23 1.50 0.76 7.00 36.70
3C 18 34/0.178 0.23 1.80 0.76 7.60 23.20
4C 30 7/0.100 0.23 0.80 0.76 5.70 381.00
4C 28 7/0.127 0.23 0.90 0.76 5.90 239.00
4C 26 7/0.16 0.23 1.00 0.76 6.20 150.00
4C 24 11/0.16 0.23 1.10 0.76 6.50 94.20
4C 22 17/0.16 0.23 1.30 0.76 6.90 59.40
4C 20 21/0.178 0.23 1.50 0.76 7.40 36.70
5C 30 7/0.100 0.23 0.80 0.76 6.00 381.00
5C 28 7/0.127 0.23 0.90 0.76 6.30 239.00
5C 26 7/0.16 0.23 1.00 0.76 6.40 150.00
5C 24 11/0.16 0.23 1.10 0.76 6.80 94.20
5C 22 17/0.16 0.23 1.30 0.76 7.40 59.40
6C 30 7/0.100 0.23 0.80 0.76 6.40 381.00
6C 28 7/0.127 0.23 0.90 0.76 6.70 239.00
6C 26 7/0.16 0.23 1.00 0.76 7.00 150.00
6C 24 11/0.16 0.23 1.10 0.76 7.30 94.20



UL20413 Industry Automatic Machine TPU Sheathed Cable

UL20413 Industry Automatic Machine TPU Sheathed Cable

UL20413 Industry Automatic Machine TPU Sheathed Cable
UL20413 Industry Automatic Machine TPU Sheathed Cable

Tag: UL20413, tpu cable, industry cable
