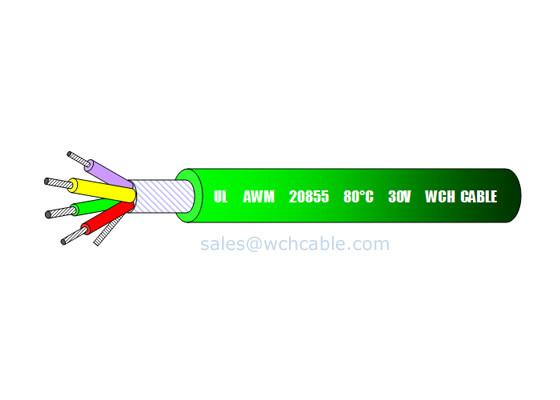

UL20855 LSZH Cable: 24AWGx4C

Name: UL20855 LSZH Cable 24AWGx4C
Brand: WCH Cable
Price: 0.15 USD

Brand Name : WCH Cable

Model Number : UL20855

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 3050 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 610 meters per carton

UL Style : UL20850

Feature : Flexible, LSZH

Voltage : 300V

Type : Multicore

Temperature : 80°C

Jacket Type : FRPE

Standard : UL758, AWM, UL1581

Advantage : Fire Resistant

Contact Now

UL20855 LSZH Cable: 24AWGx4C

Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: lszh compliant material.

Jacket: lszh compliant material.

Assigned style: UL20855.

Rated Temperature: 80°C.

Rated Voltage: 30V.

Flame Retardant Grade: VW-1, FT-1, FT-2.

Feature: LSZH compliant.

Reference Standard: Appliance Wiring Material UL758.

Application: Internal wiring or external interconnection of electronic appliances and devices.

Parameters

Style Number	Conductor Quantity	Conductor Size (AWG)	Construction (no./mm)	Insulation Thickness (mm)	Jacket Thickness (mm)	SPQ (m/reel)	Conductor Resistance (ohm/km)
UL20855	4C	24	11/0.16	0.23	0.76	305	94.20

What is LSZH Cable?

LSZH refers to Low Smoke Zero Halogen, a LSZH cable means a cable compliant to standard of LSZH regulation, and is friendly to environment. Flame retardant compounds are usually added to the insulation and jacket material of a LSZH cable, which is to enchance the cable fireproofing grade. LSZH cable of WCH Cable company includes various types, such as FRPE, Polyurethane PUR, Thermoplastic TPE, Crosslinked XLPE, vulcanised Rubber, etc.

UL20855 LSZH Cable: 24AWGx4C

Tag: UL20855, LSZH cable
