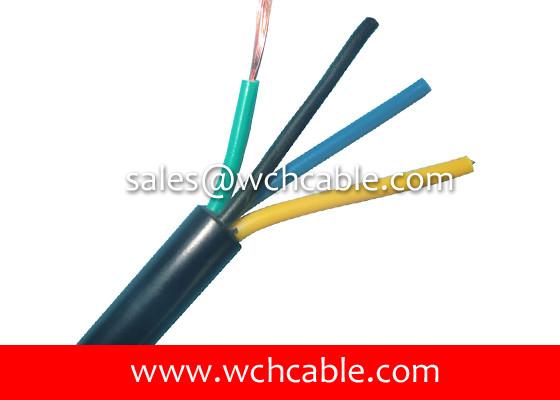

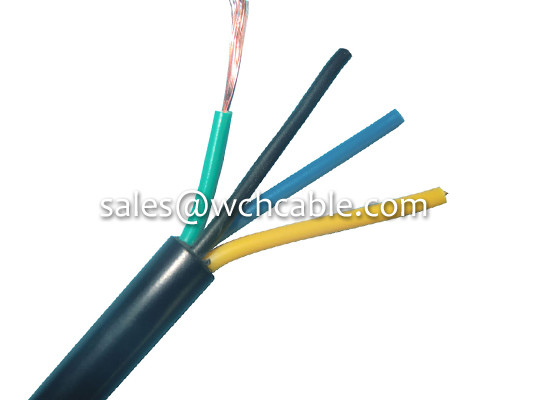

UL21099 FRPE Jacketed LSZH Insulated Instrument Data Cable

Brand Name : WCH Cable

Model Number : UL21099

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Feature : FRPE Insulated, LSZH

Rated Voltage : Low Voltage 30V

Style Number : UL21099

RoHS Compliant : Yes

Use : Instrument Data Transmission

Halogen Free : Yes

Contact Now

UL21099 FRPE Jacketed LSZH Insulated Instrument Data Cable



Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE



Rated Temperature: 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2



Executed Standard: Appliance Wiring Material UL 758.



Application: Internal wiring of appliances and external interconnection of electronic equipment.



Parameters of FRPE Insulated Instrument Data Cable UL21099:



Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Screen Shield Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm -- mm mm Ω/KM
UL21099 28 7/0.127 2 0.25 0.85 Mylar 0.35 2.50 239.00
7/0.127 3 0.25 0.85 Mylar 0.35 2.70 239.00
7/0.127 4 0.25 0.85 Mylar 0.35 2.90 239.00
7/0.127 5 0.25 0.85 Mylar 0.35 3.10 239.00
7/0.127 6 0.25 0.85 Mylar 0.35 3.30 239.00
7/0.127 7 0.25 0.85 Mylar 0.35 3.50 239.00
7/0.127 8 0.25 0.85 Mylar 0.35 3.70 239.00
7/0.127 9 0.25 0.85 Mylar 0.35 3.90 239.00
7/0.127 10 0.25 0.85 Mylar 0.35 4.10 239.00
UL21099 26 7/0.16 2 0.25 1.00 Mylar 0.35 2.70 150.00
7/0.16 3 0.25 1.00 Mylar 0.35 2.90 150.00
7/0.16 4 0.25 1.00 Mylar 0.35 3.10 150.00
7/0.16 5 0.25 1.00 Mylar 0.35 3.50 150.00
7/0.16 6 0.25 1.00 Mylar 0.35 3.70 150.00
7/0.16 7 0.25 1.00 Mylar 0.35 3.90 150.00
7/0.16 8 0.25 1.00 Mylar 0.35 4.10 150.00
7/0.16 9 0.25 1.00 Mylar 0.35 4.30 150.00
7/0.16 10 0.25 1.00 Mylar 0.35 4.60 150.00
UL21099 24 11/0.16 2 0.25 1.10 Mylar 0.35 3.30 94.20
11/0.16 3 0.25 1.10 Mylar 0.35 3.50 94.20
11/0.16 4 0.25 1.10 Mylar 0.35 3.70 94.20
11/0.16 5 0.25 1.10 Mylar 0.35 3.90 94.20
11/0.16 6 0.25 1.10 Mylar 0.35 4.10 94.20
11/0.16 7 0.25 1.10 Mylar 0.35 4.30 94.20
11/0.16 8 0.25 1.10 Mylar 0.35 4.50 94.20
11/0.16 9 0.25 1.10 Mylar 0.35 4.70 94.20
11/0.16 10 0.25 1.10 Mylar 0.35 4.90 94.20
