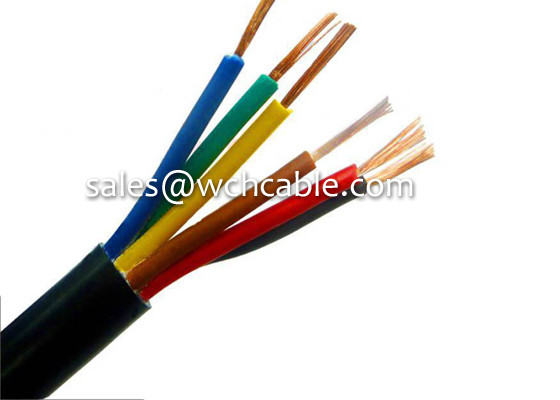

UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V

Brand Name : WCH Cable

Model Number : UL21064

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Feature : UV Resistant, LSZH

Conductor : ABC (High purity of Copper)

Use : Motor Wiring

Jacket Type : FRPE, FR-PE

UL Style : UL21064

Halogen Free : Yes

Contact Now

UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V



Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE



Rated Temperature: 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2



Executed Standard: Appliance Wiring Material UL 758.



Application: Internal wiring of electronic equipment in Class 2 systems only.



Parameters of UV Resistant ABC Motor Cable UL21064 FR-PE Sheathed:


Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Spiral Shield Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm % mm mm Ω/KM
UL21064 2C 30 7/0.100 0.25 0.80 45/0.1 0.40 2.80 381.00
28 7/0.127 0.25 0.90 48/0.1 0.40 2.80 239.00
26 7/0.16 0.25 1.00 50/0.1 0.40 3.10 150.00
24 11/0.16 0.25 1.10 50/0.12 0.40 3.30 94.20
22 17/0.16 0.25 1.30 62/0.12 0.40 3.60 59.40
20 21/0.178 0.25 1.50 72/0.12 0.40 4.10 36.70
18 34/0.178 0.25 1.70 82/0.12 0.40 4.50 23.20
UL21064 3C 30 7/0.10 0.25 0.80 48/0.1 0.40 2.90 381.00
28 7/0.127 0.25 0.90 54/0.1 0.40 3.10 239.00
26 7/0.16 0.25 1.00 58/0.1 0.40 3.30 150.00
24 11/0.16 0.25 1.10 60/0.12 0.40 3.60 94.20
22 17/0.16 0.25 1.30 72/0.12 0.40 3.80 59.40
20 21/0.178 0.25 1.50 82/0.12 0.40 4.20 36.70
18 34/0.178 0.25 1.70 96/0.12 0.40 4.70 23.20
UL21064 4C 30 7/0.10 0.25 0.80 54/0.1 0.40 3.10 381.00
28 7/0.127 0.25 0.90 30/0.10 0.40 3.20 239.00
26 7/0.16 0.25 1.00 64/0.10 0.40 3.60 150.00
24 11/0.16 0.25 1.10 68/0.12 0.40 4.00 94.20
22 17/0.16 0.25 1.30 81/0.12 0.40 4.40 59.40
20 21/0.178 0.25 1.50 92/0.12 0.40 4.80 36.70
18 34/0.178 0.25 1.70 107/0.12 0.40 5.40 23.20
UL21064 5C 30 7/0.10 0.25 0.80 58/0.1 0.40 3.30 381.00
28 7/0.127 0.25 0.90 64/0.10 0.40 3.50 239.00
26 7/0.16 0.25 1.00 64/0.12 0.40 3.90 150.00
24 11/0.16 0.25 1.10 79/0.12 0.40 4.30 94.20
22 17/0.16 0.25 1.30 90/0.12 0.40 4.70 59.40
20 21/0.178 0.25 1.50 103/0.12 0.40 5.10 36.70
18 34/0.178 0.25 1.70 120/0.12 0.40 5.90 23.20







UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V



UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V



UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V

UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V

UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V

UL21064 UV Resistant FR-PE Sheathed LSZH ABC Motor Cable 80C 30V



Tag: UL21064, UV resistant cable, ABC motor cable
