UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable

Brand Name : WCH Cable

Model Number : UL21100

Certification : UL Certificate

Place of Origin : Dongguan, China

MOQ : 1220 meters

Price : USD 0.15 per meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000000 meter per Month

Delivery Time : 9 days for ready goods

Packaging Details : 305 meters per reel

Feature : Weather Resistant

Approval Style : UL21100

Jacket Type : FRPE, FR-PE

Rated Voltage : 30V Low Voltage

UL Standard : UL758

Advantage : LSZH

Contact Now

UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable



Conductor: High Purity of Copper Wire, Stranded or Solid.

Insulation: HDPE, XLPE, FRPE, PP

Jacket: Extruded FRPE



Rated Temperature: 80C

Rated Voltage: 30V

Flame Retardant Grade: VW-1, FT-1, FT-2



Executed Standard: Appliance Wiring Material UL 758.



Application: Internal wiring of appliances and external interconnection of electronic equipment.



Parameters of 30V Weather Resistant Low Voltage FRPE Cable UL21100:



Approval Style Number Cores Conductor Insulation
Thickness		 Nom.Dia Jacket Thickness Overall
Diameter		 Conductor
Resistance
AWG No/mm mm mm mm mm Ω/KM
UL21100 3C 30 7/0.10 0.18 0.70 0.56 3.50 381.00
4C 30 7/0.10 0.18 0.70 0.56 3.50 381.00
6C 30 7/0.10 0.18 0.70 0.56 3.70 381.00
8C 30 7/0.10 0.18 0.70 0.56 3.90 381.00
9C 30 7/0.10 0.18 0.70 0.56 4.10 381.00
UL21100 3C 28 7/0.127 0.18 0.80 0.56 3.50 239.00
4C 28 7/0.127 0.18 0.80 0.56 3.50 239.00
6C 28 7/0.127 0.18 0.80 0.56 3.70 239.00
8C 28 7/0.127 0.18 0.80 0.56 3.90 239.00
9C 28 7/0.127 0.18 0.80 0.56 4.10 239.00

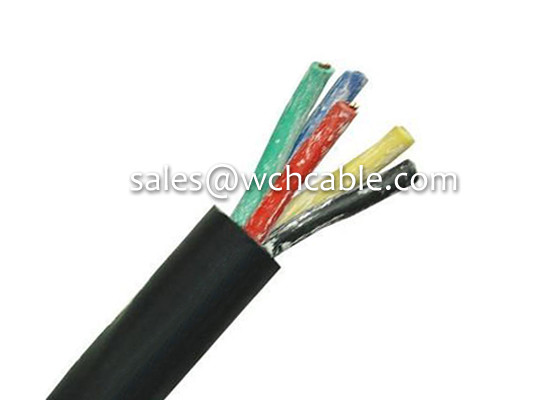

UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable





UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable



UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable



UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable



UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable





UL21100 30V Weather Resistant Low Voltage FRPE Sheathed LSZH Cable



Tag: UL21100, 30V weather resistant cable, FRPE sheathed lszh cable
